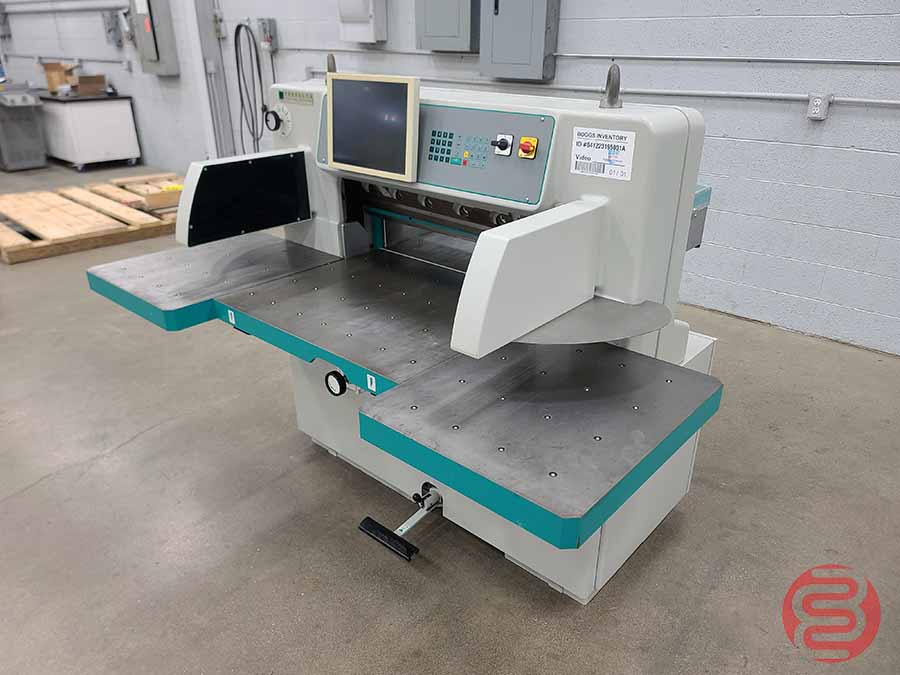

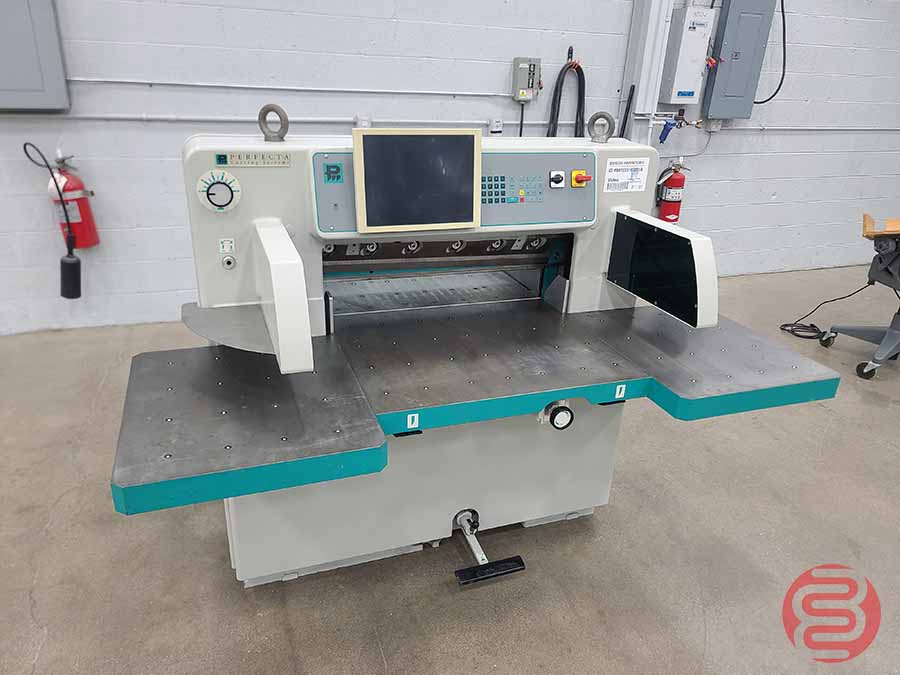

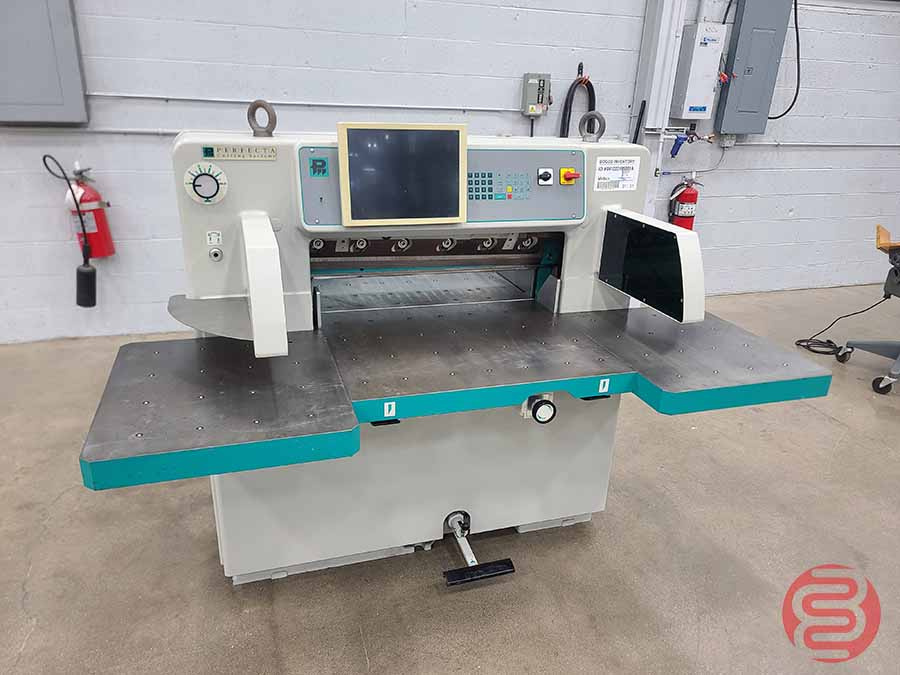

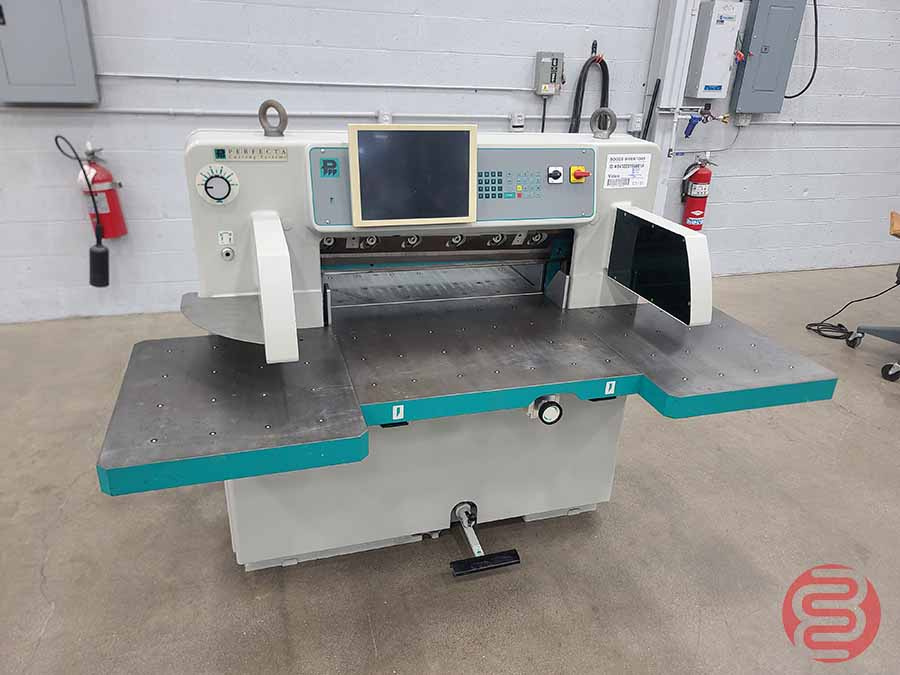

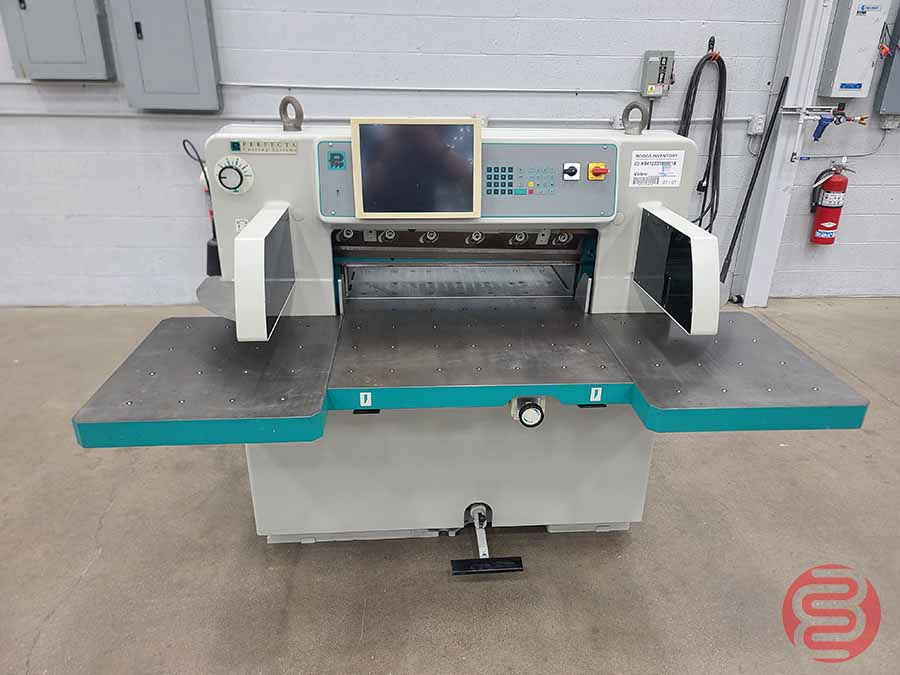

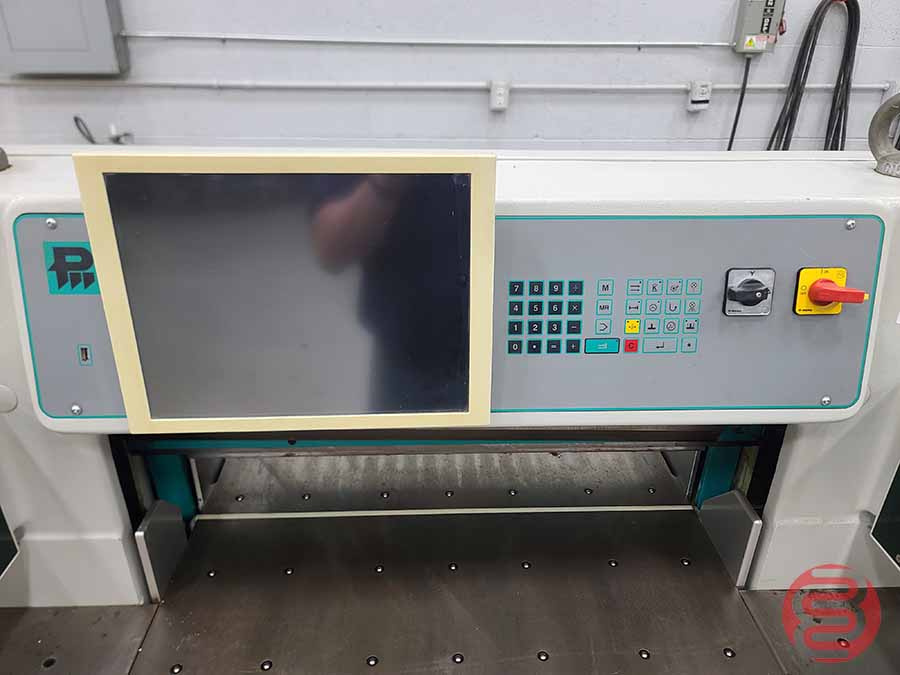

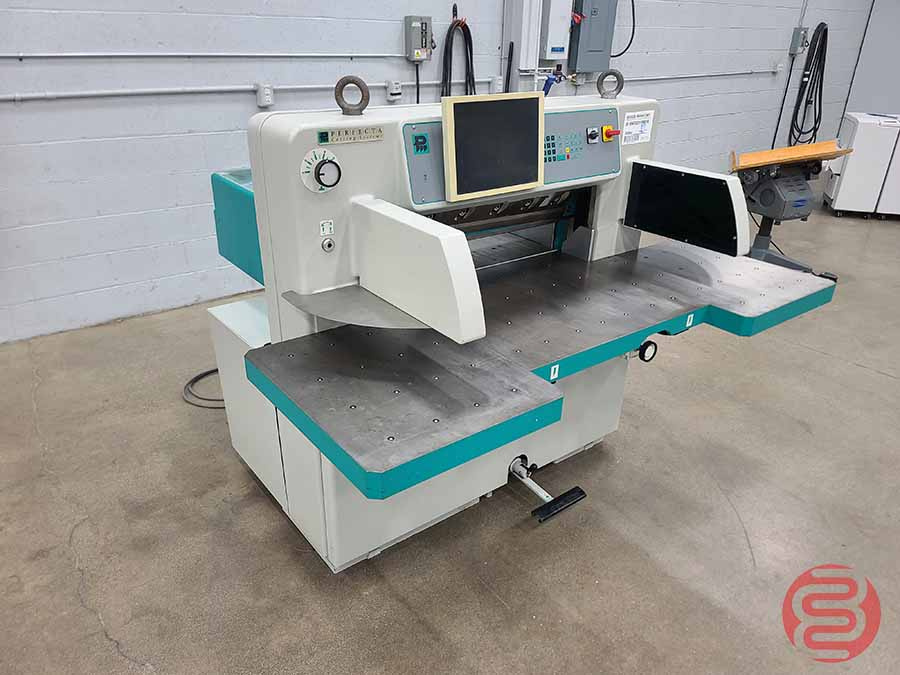

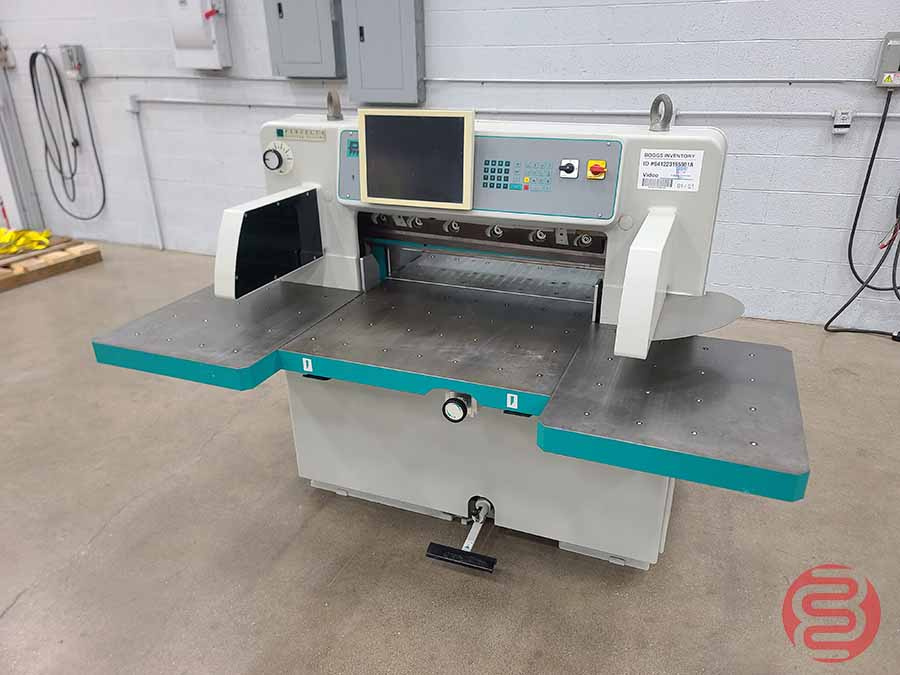

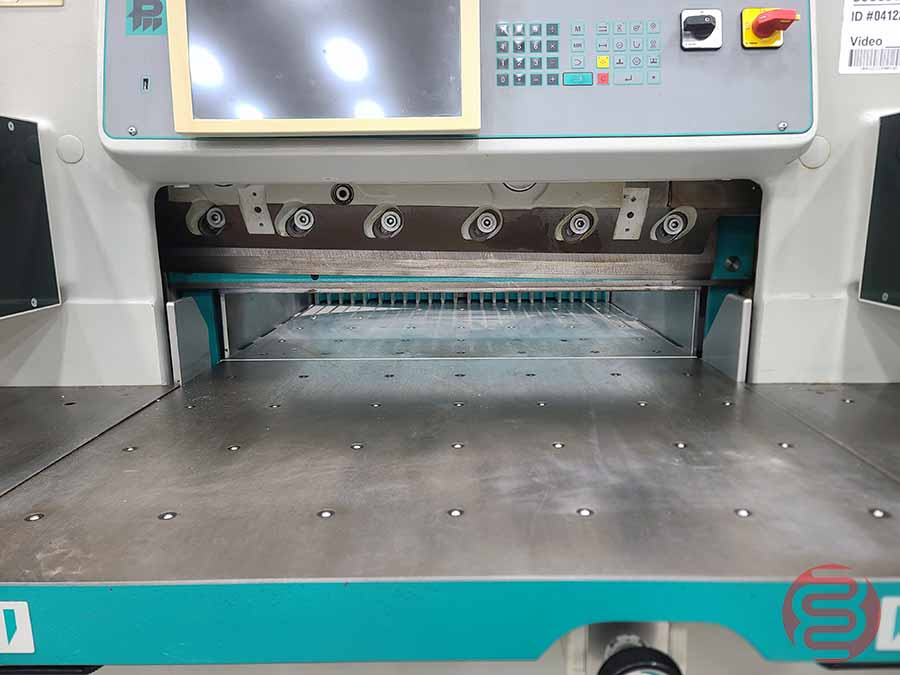

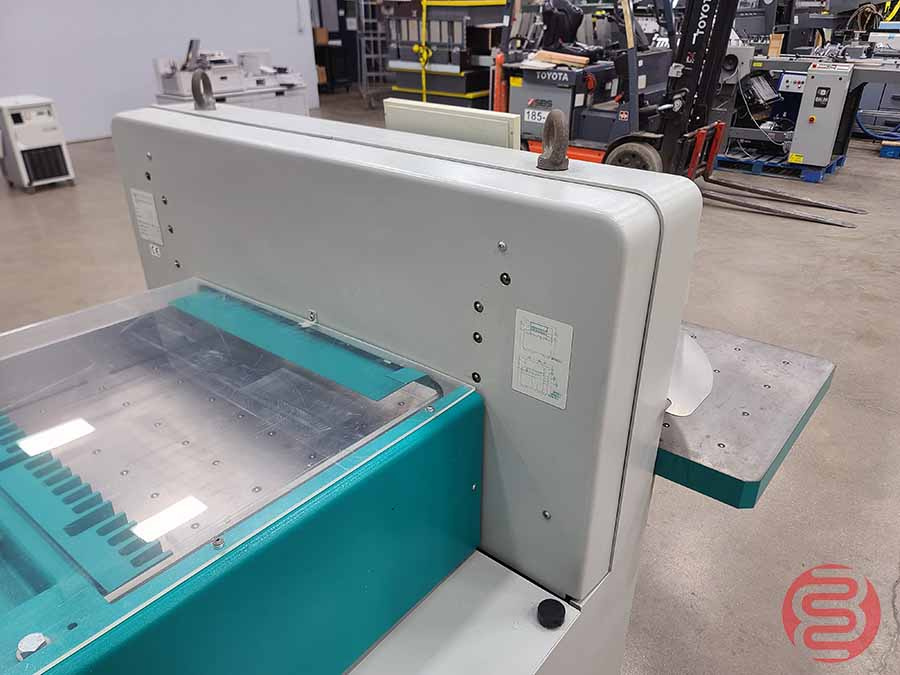

The Perfecta 76 even though economically priced, is designed with durability and productivity in mind. Capable of operating in a 24/7 environment, all safety features and accuracy are the same as the larger machines. Productivity features like 50 strokes per minute knife, 12 inches per second back gauge, slot less bed and high-speed knife change gives Perfecta the advantage over our competition. Shown is our HTVC with CIP4/JDF 15-inch touch screen computer, this machine is also available with our UC with LCD color screen.
*Includes extra blades shown*

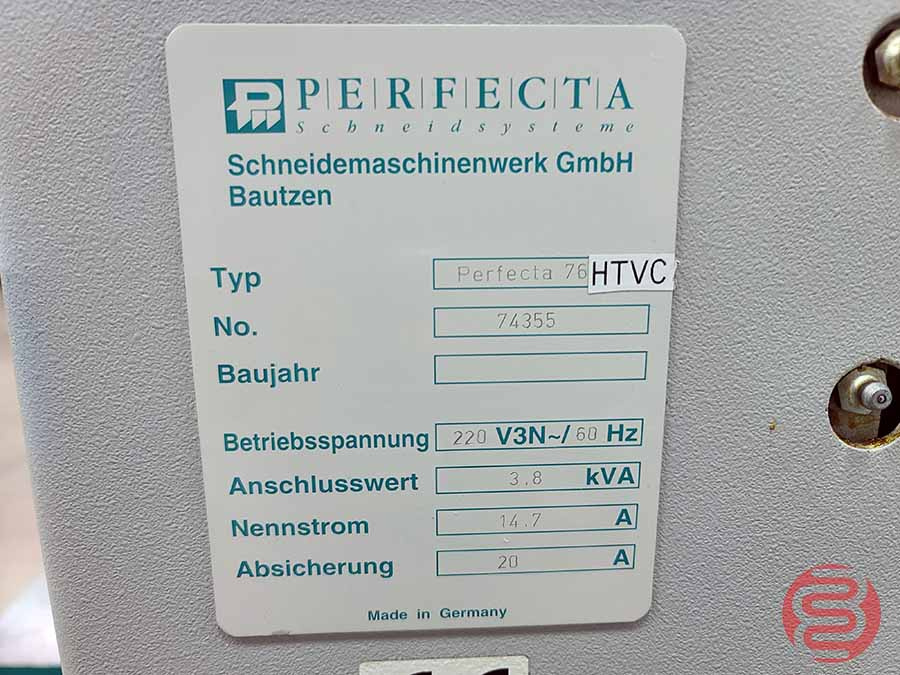

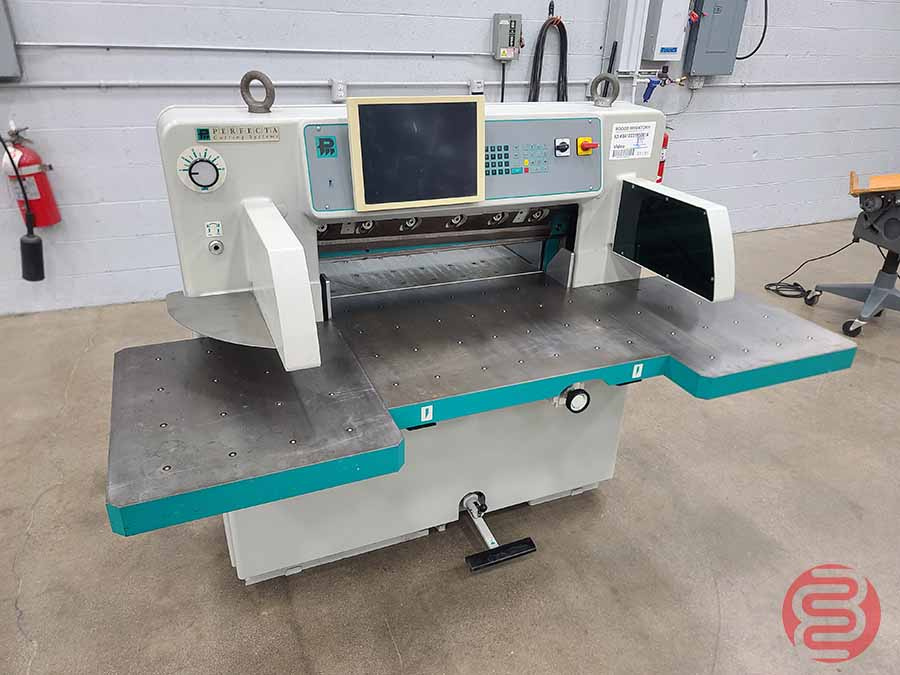

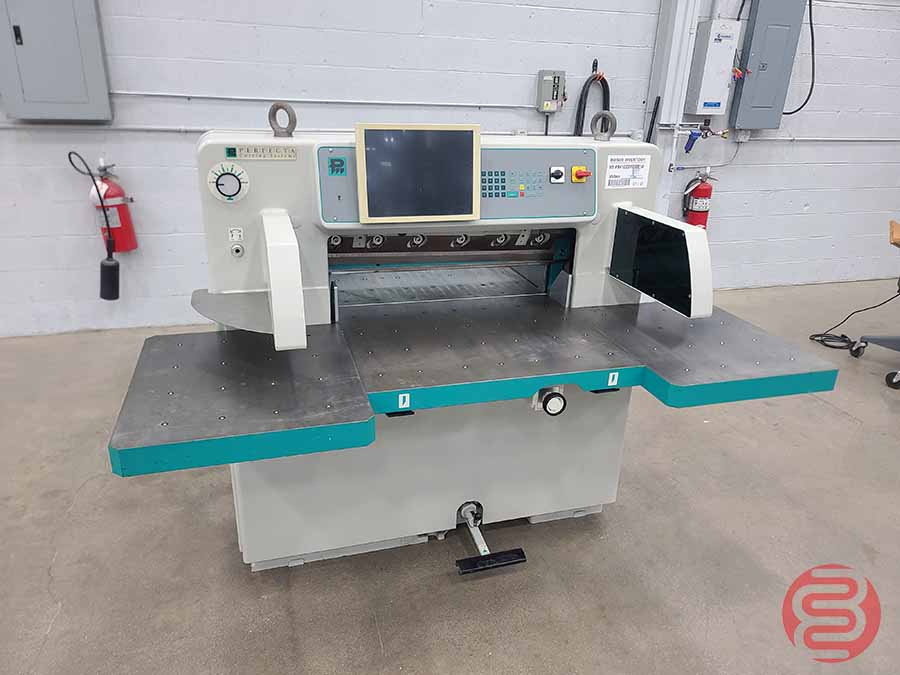

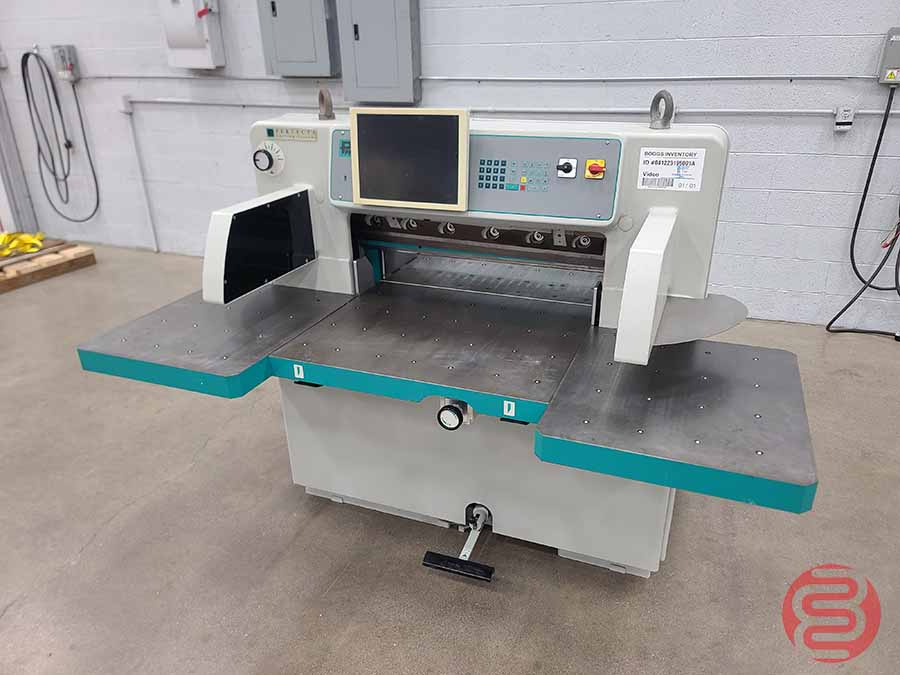

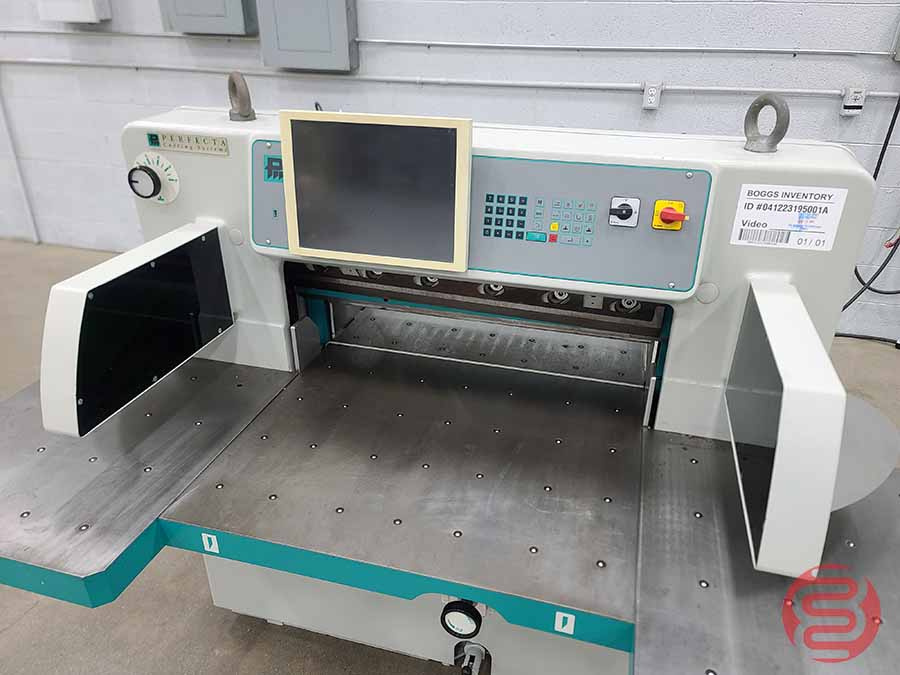

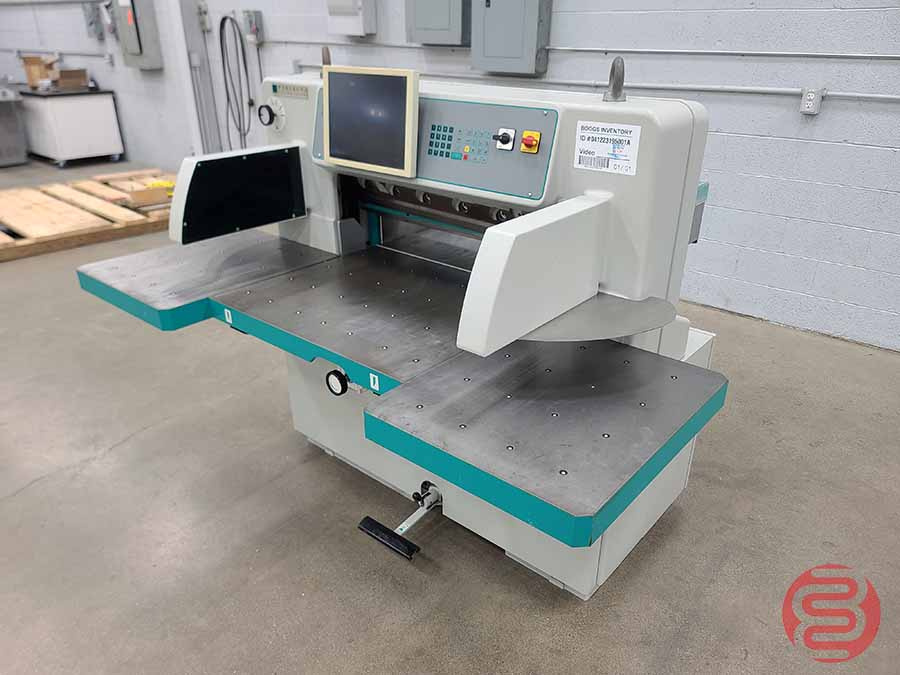

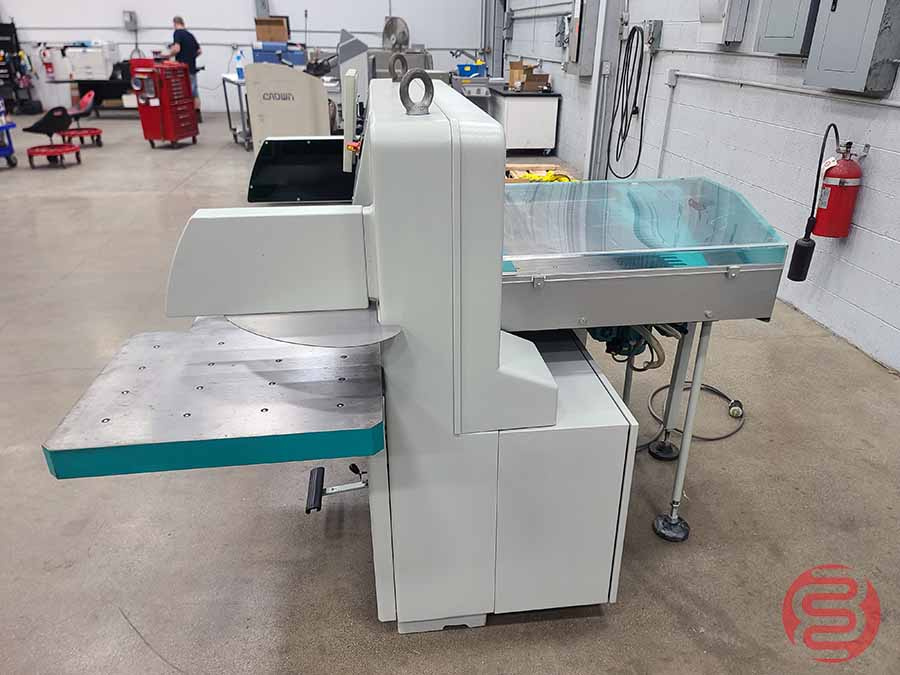

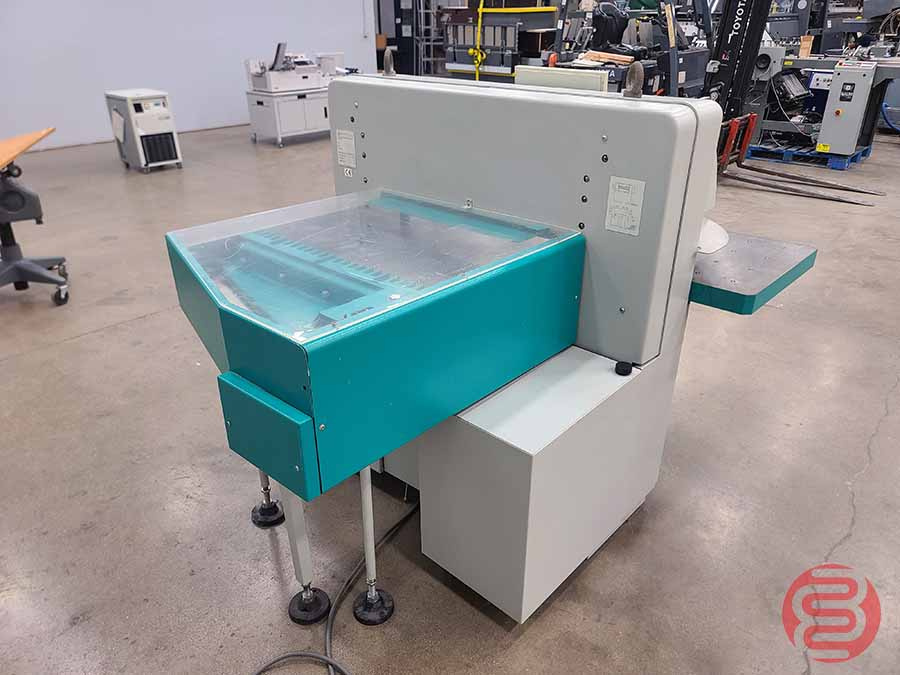

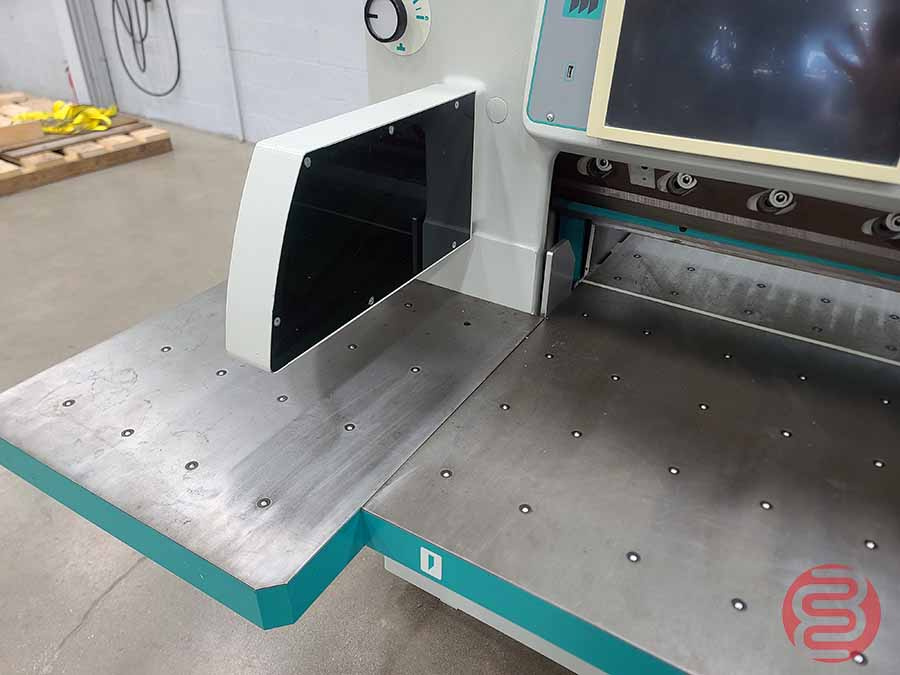

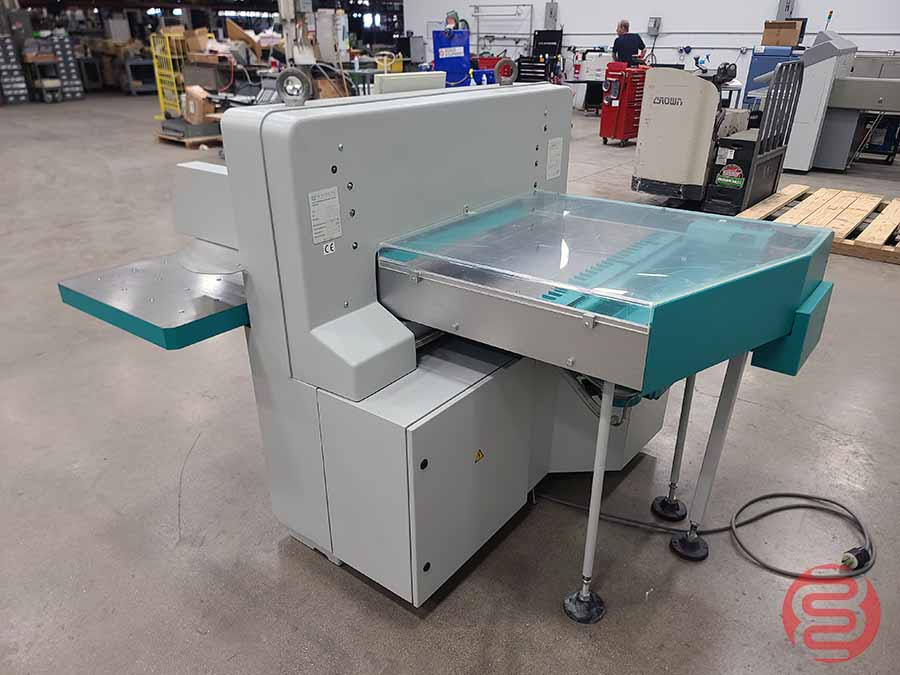

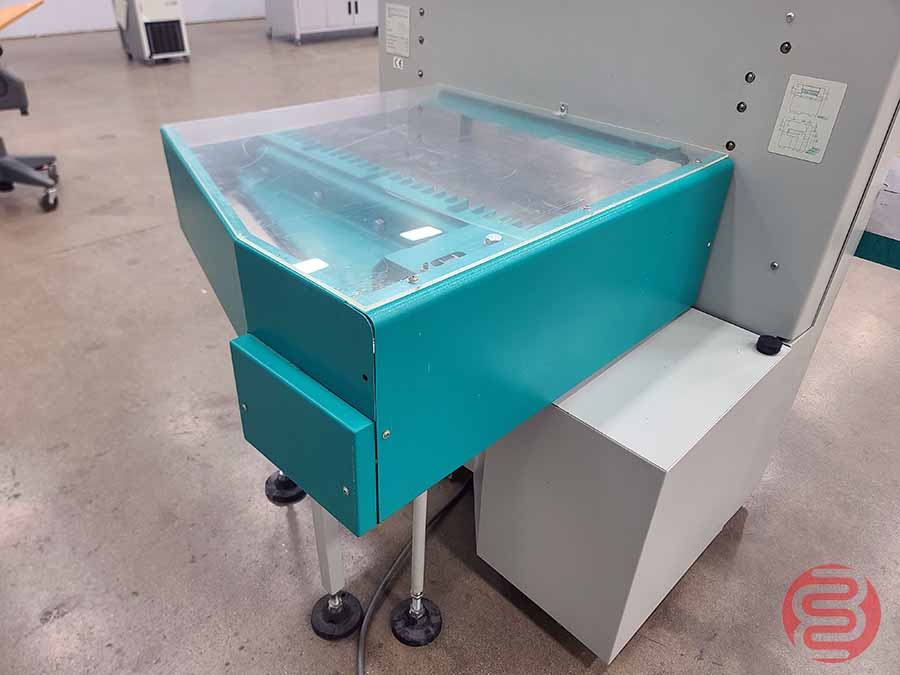

Model: Perfecta 76 HTVC
S/N: 74355
Specifications
Cutting Table Width: 29 15/16 in.
Feed Height: 4 5/16 in.
Useful Rear Table Height: 29 15/16 in.
Min. Cut w/o False Clamp: 9/16 in.
Min. Cut w/ False Clamp: 1 21/32 in.
Continuous Cycle Rate: 50 Cycles per minute
Clamping Force: 450-5600 lbs/sq in.
Main Drive Power: 2.2 kW
Power Required: 220 V/ 3 Phase / 20 Amps
Features
Two hand cut Control.
Mechanical non repeat device

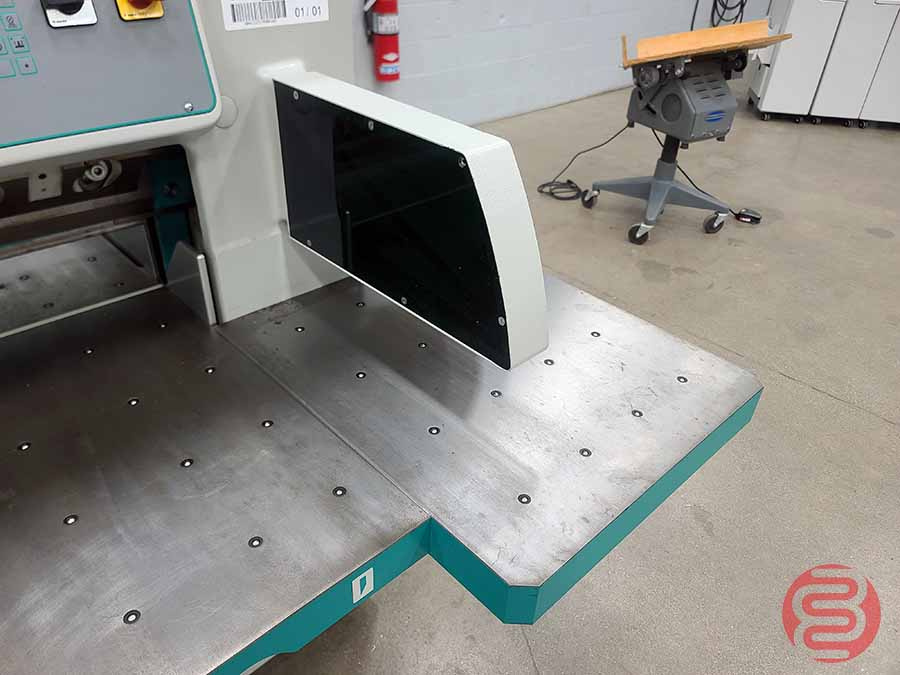

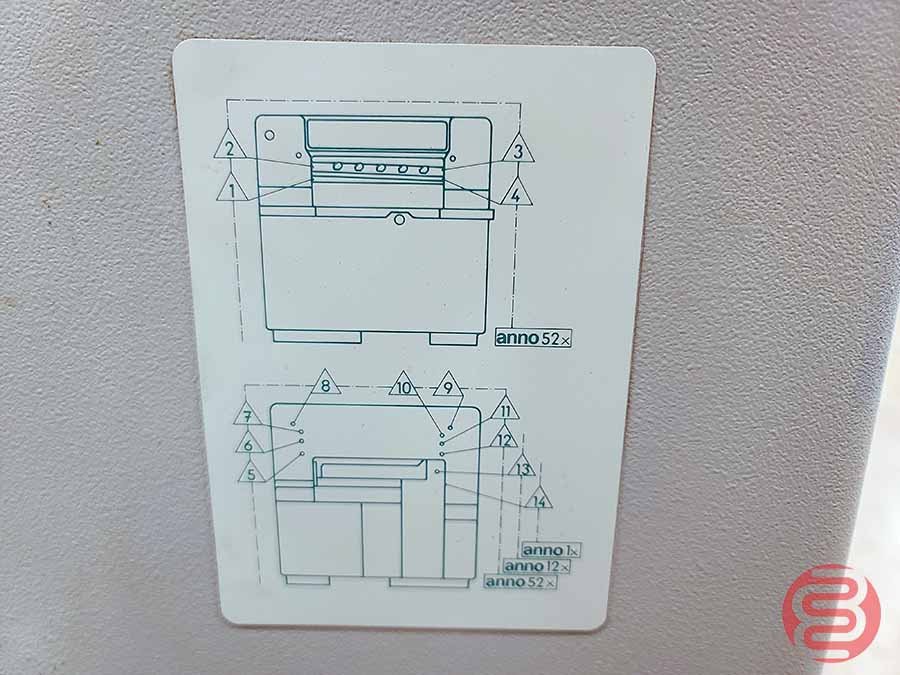

Self-Monitoring safety light barrier
Overload protection device
CIP 3 enabled

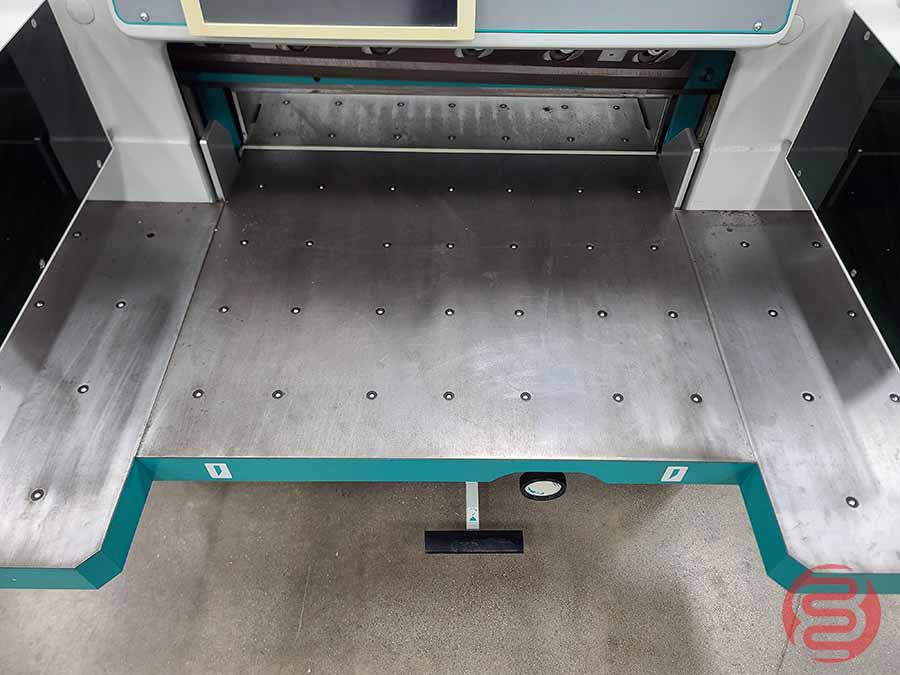

Self-contained air bed
Hydraulic clamp
Gear driven knife
Table light and cut line light.
