S/N: 81N1008
Paper Cutter Description

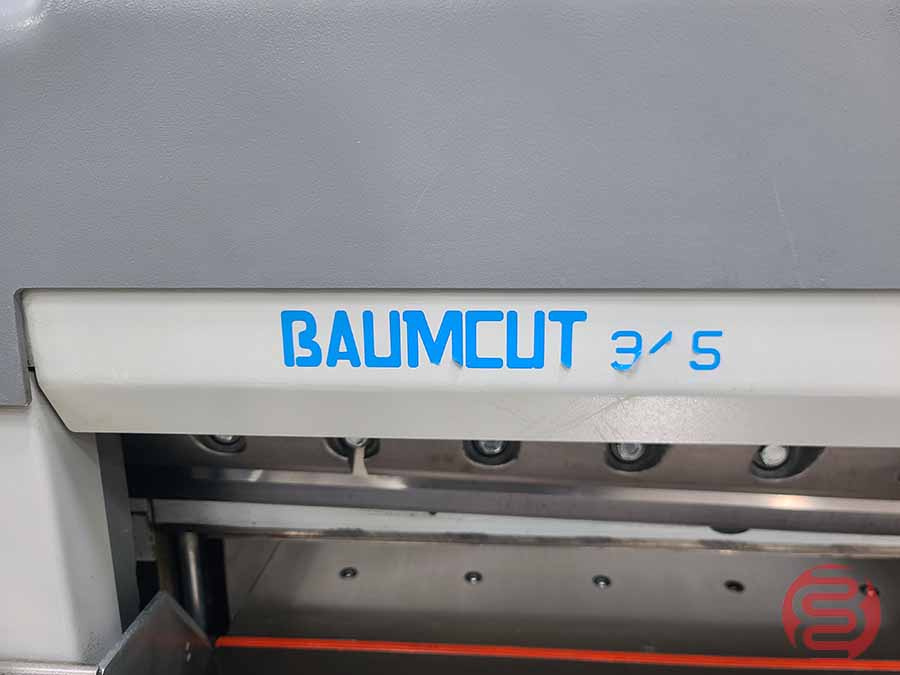

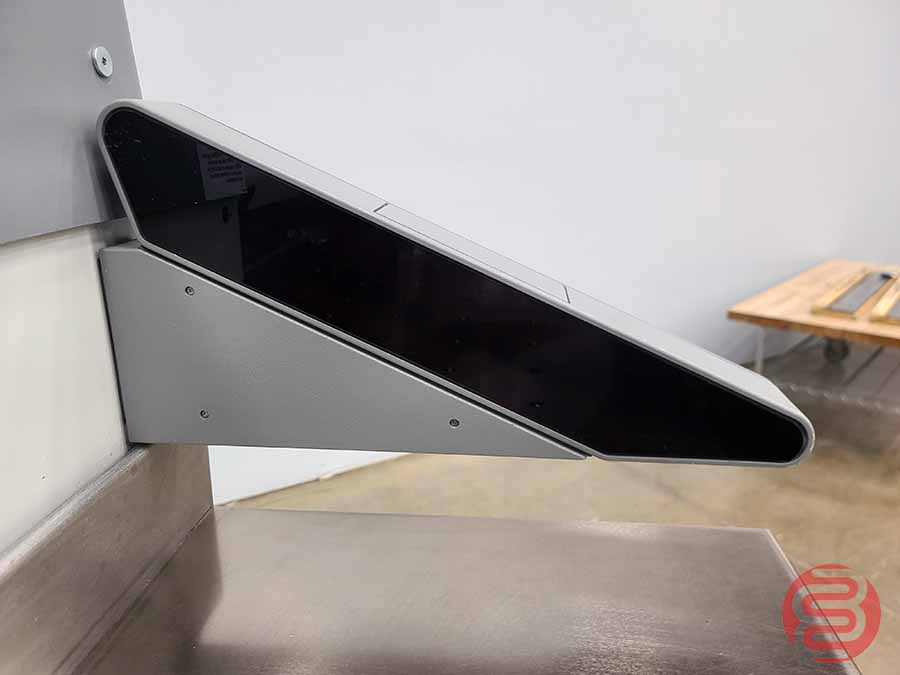

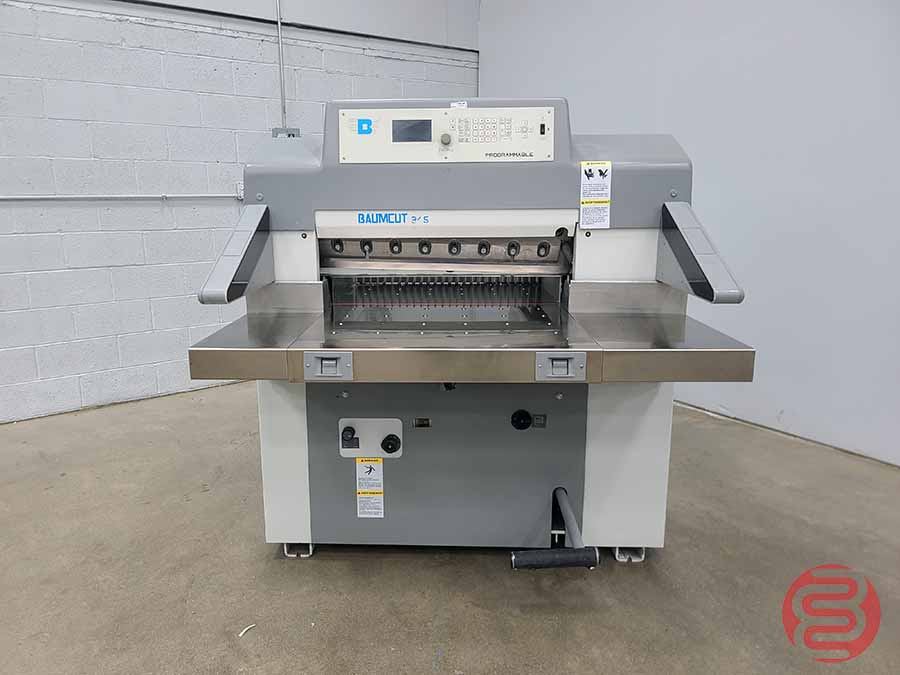

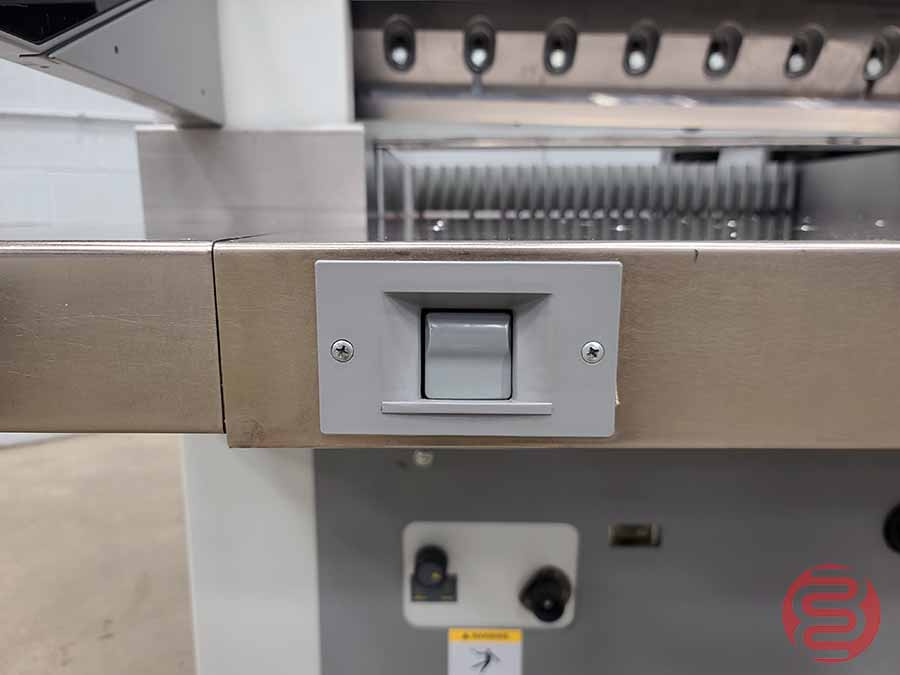

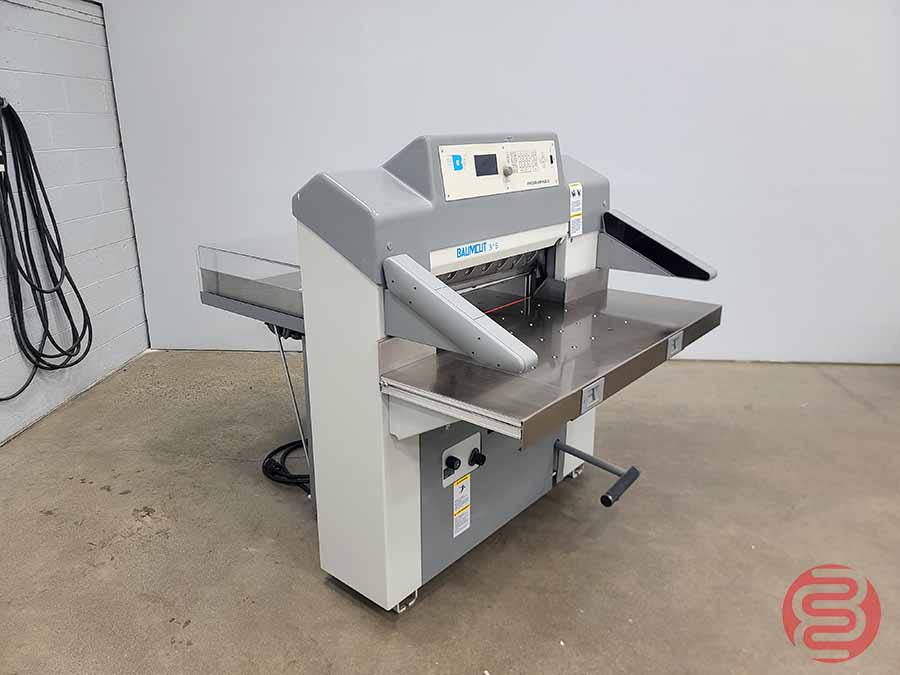

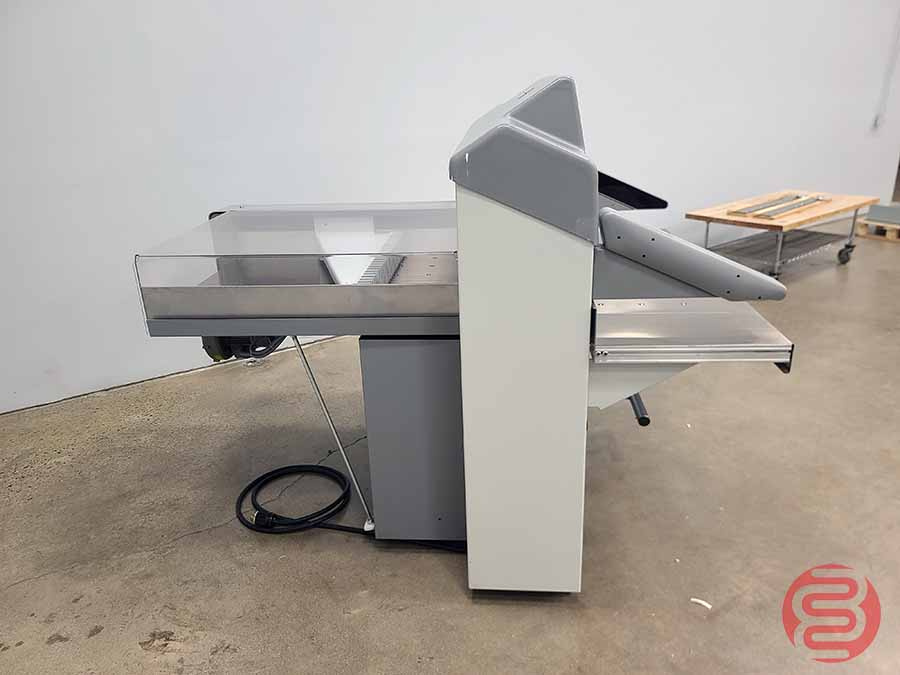

The Baumcut 31.5 programmable cutter is efficient, compact, and easy to operate, with minimal maintenance. This heavy-duty, fully hydraulic cutter features easy push-button programming and stores up to 99 programs with 6464 cut steps. The Baumcut 31.5 offers high-productivity precision cutting with maximum safety in mind. Infrared safety beams, two-hand timed cut release and covered rear table help ensure operator safety. Noise levels are kept to a minimum since the motor runs only during cutting operations. Programming is automatic. Simply cut the first ream manually, and the cuts are stored as a program. A large central LCD display indicates data in the selected language. Knife changes are easy, with a front adjustment. Built-in table light and optical cutting line indicator yields more precise cutting.
Paper Cutter Features

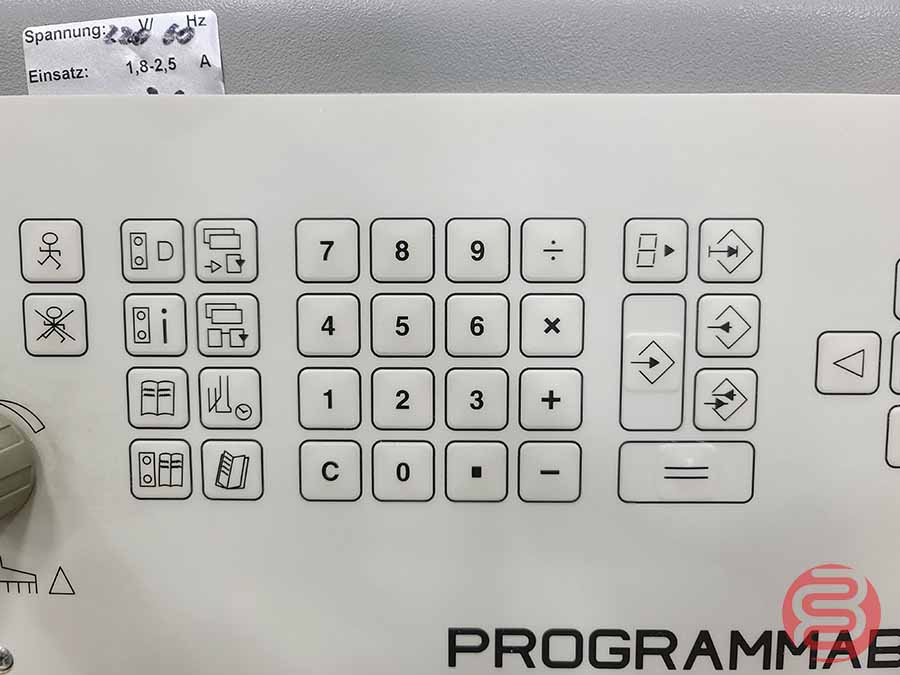

• Push-button programming – stores up to 99 programs, 6464 cut steps

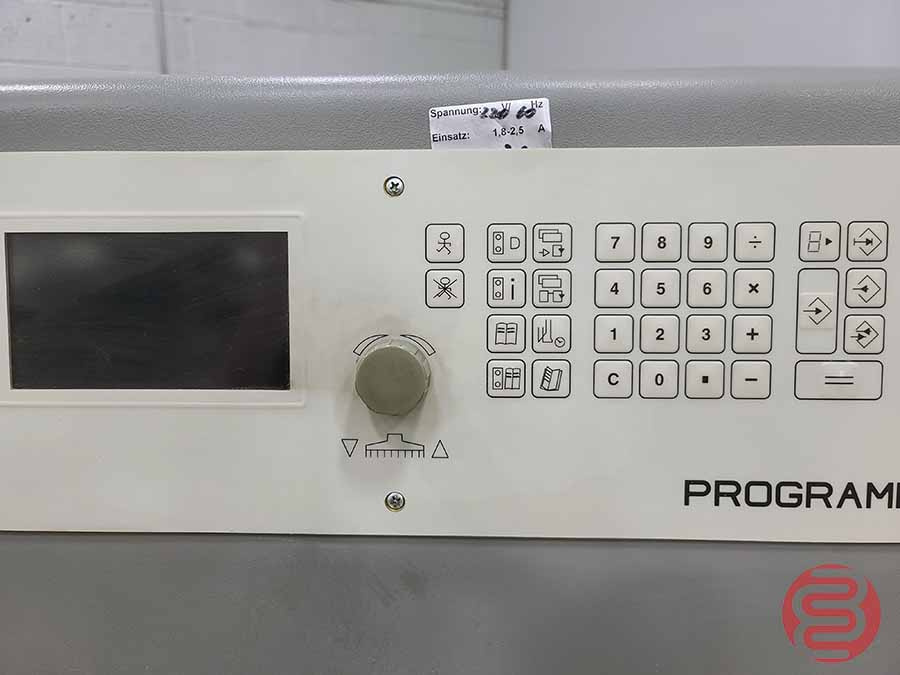

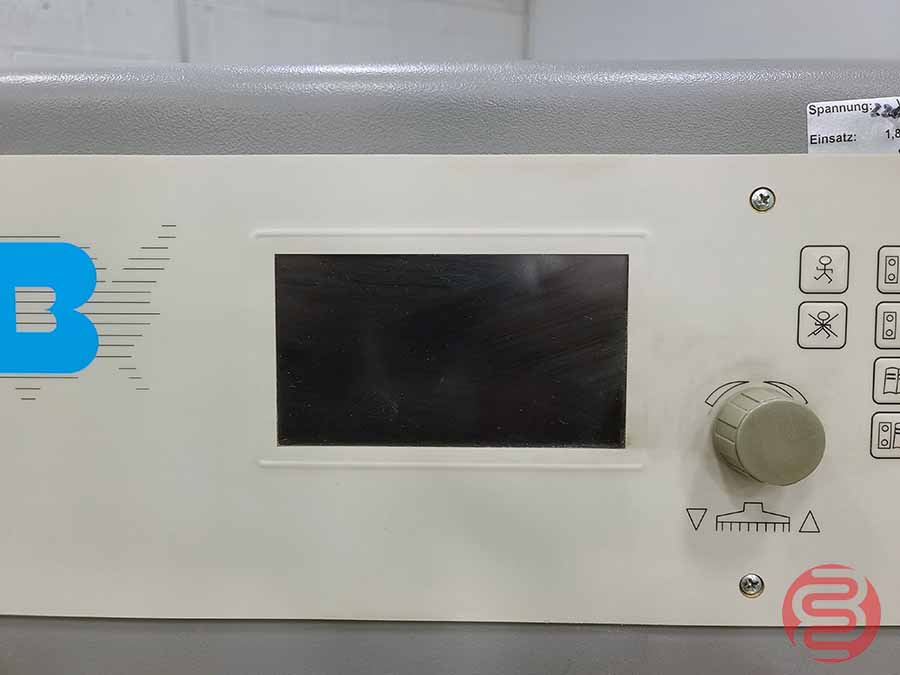

• Large, central LC display – indicates data in the selected language

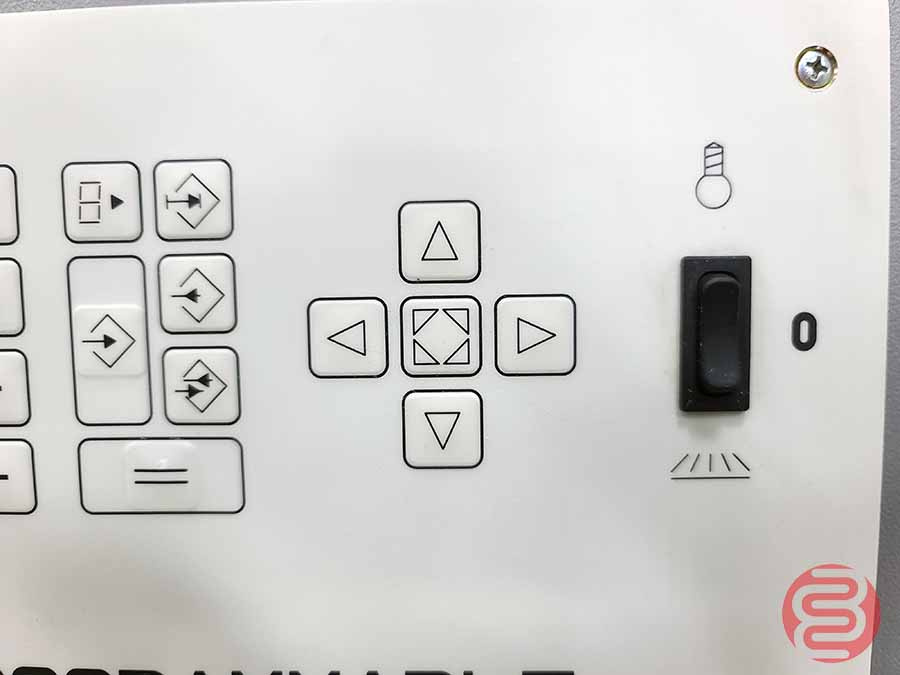

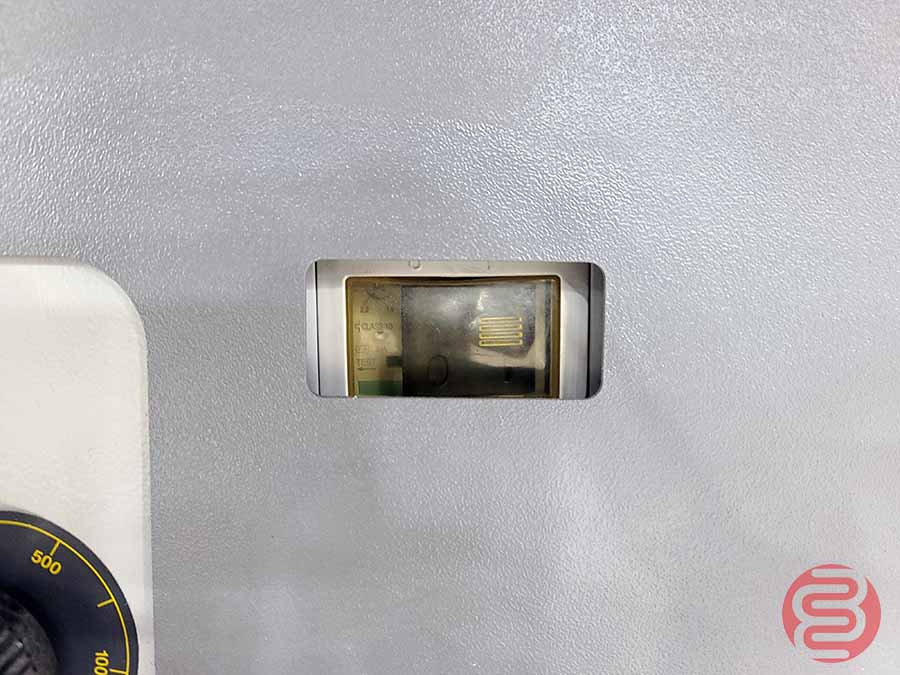

• Optical cutting line indicator & table light – for precision cutting
• Automatic programming – first manual cuts stored as program
• Repeat function – cut sizes can be repeated as needed
• Low noise levels – motor runs only during cutting operations
• Manual back gauge positioning with electronic handwheel
• Hydraulic knife drive and clamping
• Overload protection – for main motor and back gauge drive
• Motor-powered back gauge drive

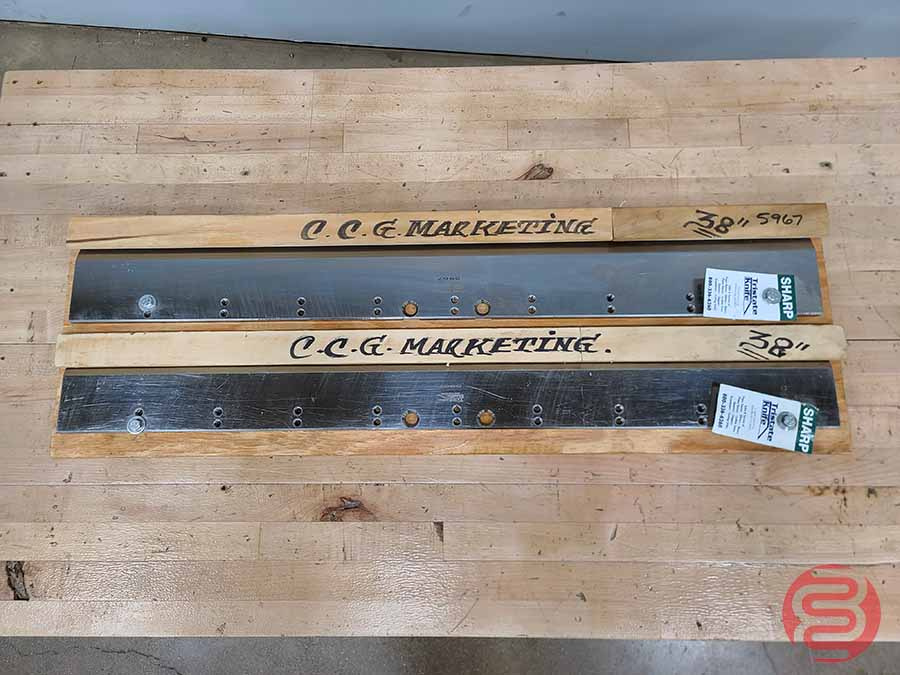

• Easy knife change with front adjustment – Tools included
• Hydraulic clamp pressure is adjustable for a variety of materials

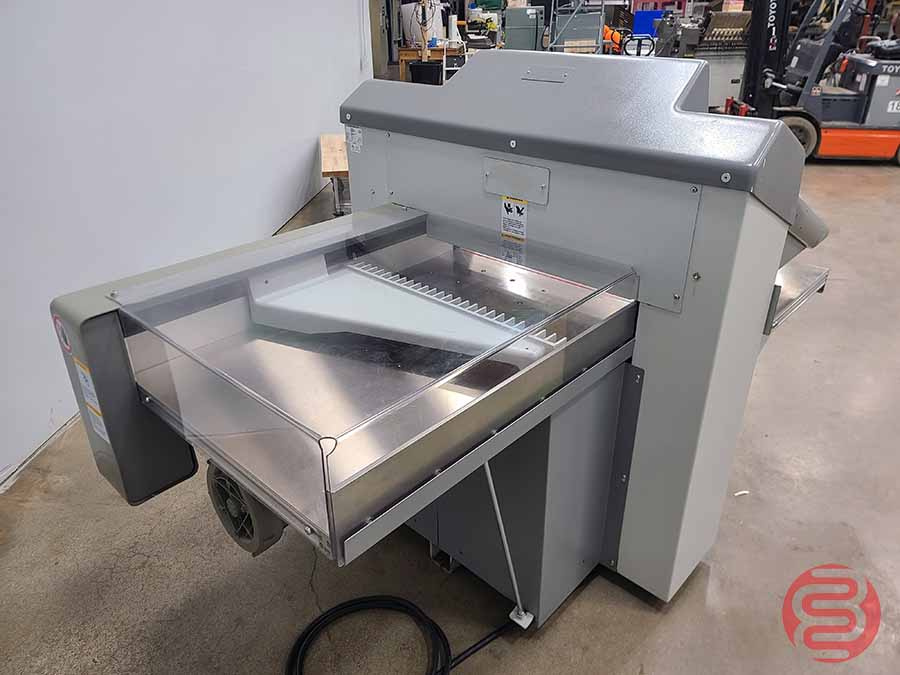

• Non-corrosive closed table surface
• Machine self-diagnosis with error indication
Paper Cutter Specifications
Cutting width ……………………………………………….. 31.5″ [80cm]
Cutting height ……………………………………………… 3.88″ [9.8cm]
Length behind knife ……………………………………….. 31.5″ [80cm]
Table length front of knife ……………………………. 26-3/8″ [67cm]
Table height …………………………………………….. 35-1/2″ [90cm]
Knife speed …………………………………………………… 25 cuts/min
Knife thickness ………………………………………….. 0.5″ [12.7mm]
Knife ground-off maximum …………………………….. 0.88″ [22mm]
Minimum cut without false clamp plate ……………….. 0.59″ [1.5cm]
Minimum cut with false clamp plate …………………… 2.19″ [5.5cm]
Clamp pressure [min] …………………… 440 pounds force [200daN]
Clamp pressure [max] ……………….. 5950 pounds force [2700daN]
Backgauge speed …………………………………………. 0 – 13 cm/sec
Net weight ……………………………………………….. 2200# [997kg]
Cut steps ……………………………………………………………… 6464
Programs …………………………………………………………………. 99
Electrics ………………………………………220V/3ph/60 Hz, 30 amps
